3Way Series

Manual Valve for Pipe

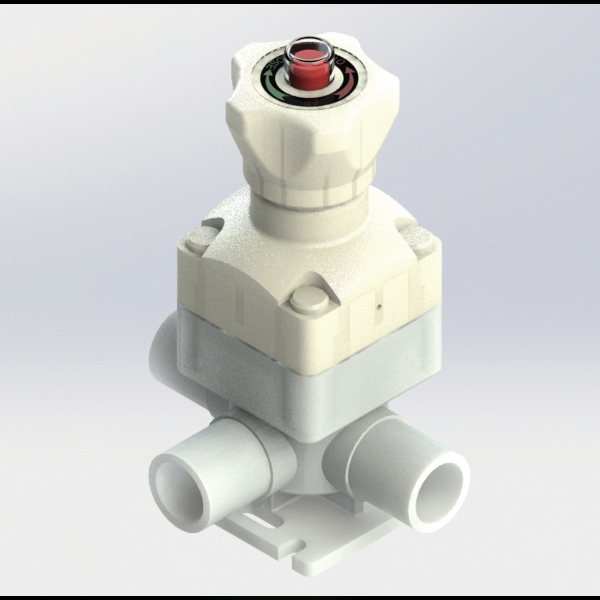

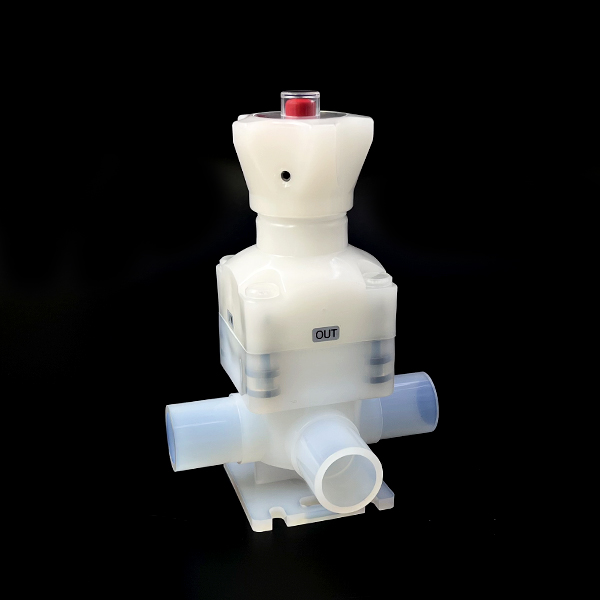

3WAY Manual Diaphragm Valves

Characteristics - Used as a control Valve for semiconductor, LCD and pharmaceutical conveying lines
where high purity is required
- PFA and PTFE, which have excellent chemical resistance, are used in the wetted part to
block metal ions and other contaminants

Product Details

Item	Category	1/4"~1" / 15A~25A	1-1/2"~2" / 40A~50A
Working Pressure	MF/AT series, ECC, 3WAY	Max. 8kg/㎠	Max. 7kg/㎠
	WF, AWF	Max. 6kg/㎠	-
	Lined	Max. 10kg/㎠	Max. 10kg/㎠
Back Pressure	MF/AT series, ECC, 3WAY	Max. 7kg/㎠	Max. 6kg/㎠
Pneumatic Supply Pressure	AT series, AWF	4kg/㎠ to 6kg/㎠	Port : 1/8”PT

Item	Category	1/4"~1" / 15A~25A	1-1/2"~2" / 40A~50A
Working Pressure	MF/AT series, ECC, 3WAY	-10℃ to 60℃	0℃ to 90℃
	WF, AWF	-	0℃ to 80℃
	Lined	-	Max. 120℃

All EF’s high purity products are subject to optimum quality management with strict quality control.

Flare-Type

Welding-Type

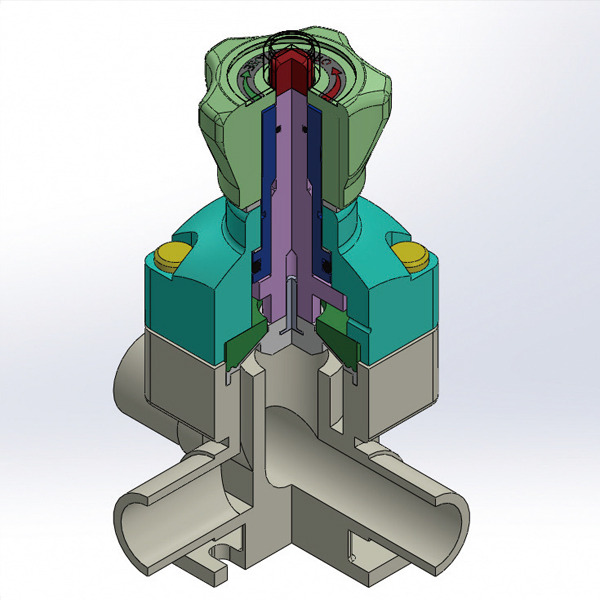

01 Features

Bolting
Manual
Welding
Diaphragm
3Way

02 Advantages

Pure PFA
By using PFA and PTFE with excellent chemical resistance in the wetted parts, we fundamentally block metal ions and other contaminants.
Compact Design
Designed with a simple structure to occupy minimal space.
Clean Room
Produced in a clean environment to manufacture top-quality products free from contaminants.
Leak Detection
Allows immediate confirmation of leakage status, minimizing waste of chemical solutions.

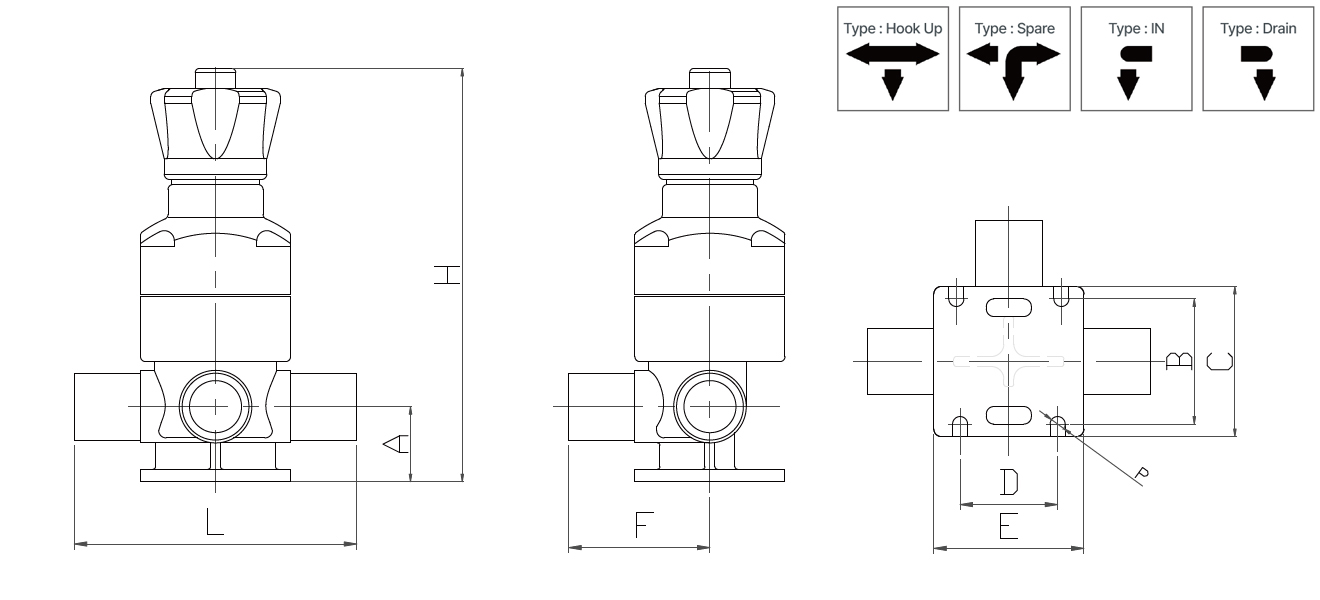

03 Product Drawings

* (mm) ** (Cv) Connection Type : Pipe

Part No.	Y	Z	X	Flow Factor**	L*	H*	A*	B*	C*	D*	E*	F*	P Hole Size
EF-3WAY-020-H (HOOK UP)	20A	20A (Out)	20A	6.5	110	165	31	50	60	39	60	55	6
EF-3WAY-020-S (SPARE)	20A	20A	20A (Out)	6.5	110	165	31	50	60	39	60	55	6
EF-3WAY-020-I (IN)	20A	20A (Out)	-	6.5	84	165	31	50	60	39	60	55	6
EF-3WAY-020-D (DRAIN)	-	20A (Out)	20A	6.5	84	165	31	50	60	39	60	55	6
